Modular Voice Recognition Board V3 Compatible with Featuring 80 Voice Capacity and Multi Voice Processing via UART and GPIO

Description

• [POWERFUL VOICE RECOGNITION] Features the ability to recognize up to 80 unique voices with a response time of 1500ms per , for diverse applications.
• [MULTI-VOICE PROCESSING] Efficiently processes up to seven simultaneous voices, providing quick and effective responses in demanding environments.
• [EASY INTEGRATION] Includes an library that streamlines project integration, facilitating easier development and improved performance.
• [FLEXIBLE CONTROL METHODS] Supports control via UART/GPIO, catering to both novice and experienced users for straightforward implementation.
• [CUSTOMIZABLE GPIO OUTPUTS] Empowers users with the ability to manage GPIO pins for tailored outputs, perfect for a variety of creative projects.

Features:
1. Extensive Capabilities: The voice recognition for module supports up to 80 voice , each lasting up to 1500ms, enabling single-word and double-word recognition. This makes it a versatile tool for a wide range of applications.
2. Simultaneous Processing: The voice recognition for module board can process up to seven voice simultaneously, efficient and responsive control in complex environments.
3. Compatible with Included for Arduino Library: The sound card comes with an included for Arduino library for easy integration into your project. This feature simplifies the development process and improves functionality.
4. Simple Control Options: The voice recognition for module offers simple control via UART/GPIO, providing flexibility and ease of use for both beginners and advanced users. This ensures seamless integration with your existing system.
5. User-Controllable GPIO Output: The voice recognition for module board allows user-control of general-purpose input/output (GPIO) pins, providing customizable and versatile output options for a wide range of applications.

Specifications:
Part Name: Voice Recognition for Module
Color: As shown
Material: ABS
Type: for Module
The voice recognition for module is a compact and easy-to-control voice recognition board. This product is a personal voice recognition for module that supports up to 80 voice and can execute up to 7 voice simultaneously. Any sound can be trained as a . The user must first train the for module before it can recognize voice .
This board has two control methods: a serial port (full functionality) and general-purpose input pins (limited functionality). The general-purpose output pins on the board can output various waveforms based on the recognized voice .
Range:
Voltage: 4.5, 5.5V
Current: <40mA
Digital Interface: 5V for TTL level for UART and GPIO interfaces
Analog Interface: 3.5mm microphone connector + microphone pin connector
Dimensions: 31mm x 50mm
Recognition Accuracy: 99% (under for ideal conditions)
size: 50.00 x 31.00 x 5.00mm

Package Contents:

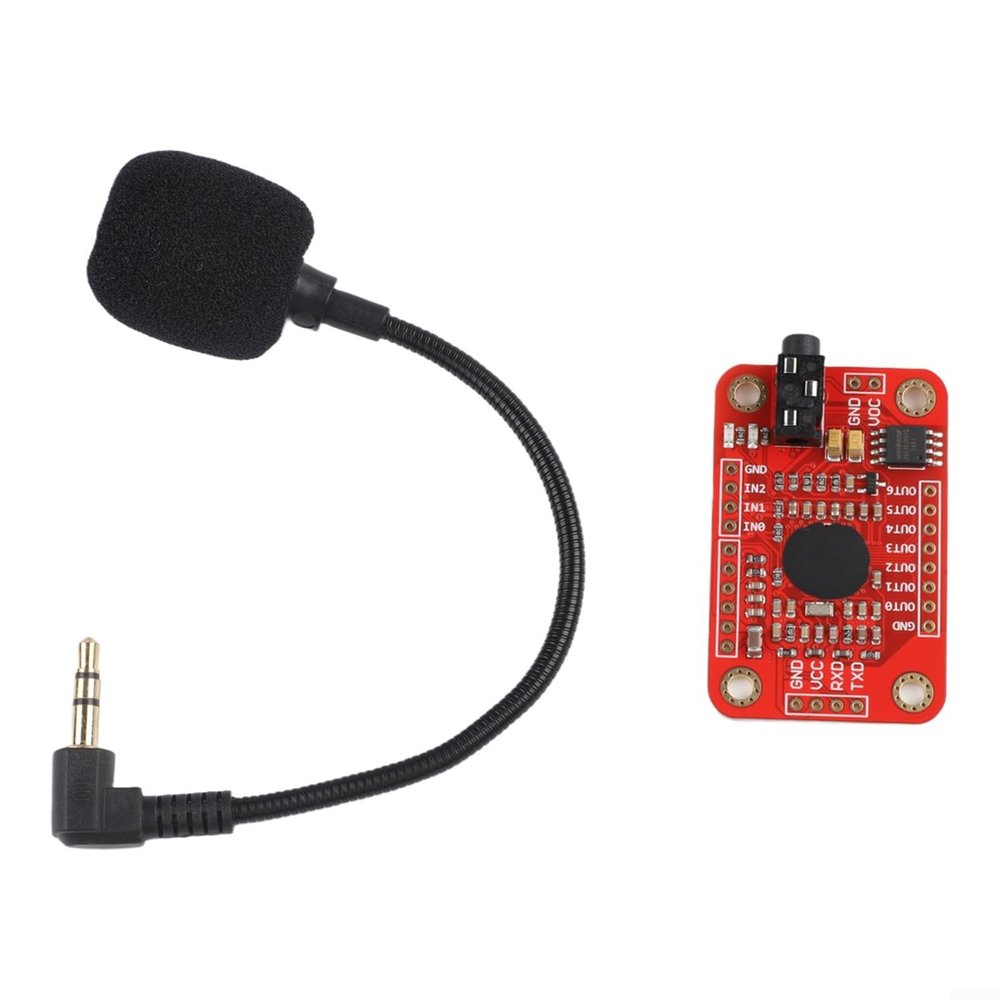

1 x Voice Recognition for Module + Microphone
